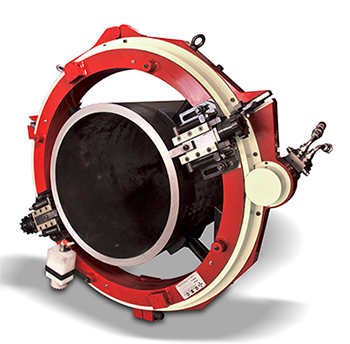

Pipe cold cutting and bevelling machines
RANGE ØE 168-1530 MM (6”-60”)
Developed for on site use in pipelines, machine body is split frame type allowing set up of machine at any point along pipelines.
Upper locking jaws are marked with workable pipe diameter foreasy and quick machine set up onto pipe. The unit is equipped with two copier toolboxes for following the pipe od profile, thus minimizing the bevel offset due to out of round of pipe.Pipe cutter SUPERCUTTER available with pneumatic or hydraulic motor.
RANGE:
6” – 60” o/d.
FUNCTIONS:
Cutting, bevelling, facing, counterboring.
MATERIALS:
Any kind of steel.
POWER:
Pneumatic/hydraulic.
NOTE:
The SUPERCUTTER range of portable pipe cutting and bevelling machines are ruggedly designed to work in the most arduous conditions. the split frame design enables in-line pipe to be cut and bevelled simultaneously. various size of machines cover from 6” to 60” diameter. all types of weld prep can be achieved up 60 mm wall thickness.
