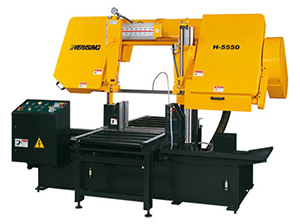

H-5550
|
|
|
| |
|
|
 |
|
|
Model
|
H-5550
|
|
Capacity
|
?
|
500 mm (20")
|
|
¦
|
550 x 500 mm (22" W x 20" H)
|
|
Blade Speed
|
17, 25, 35, 45, 65, 75 m/min (55, 80, 115, 150, 180, 215, 250 fpm)
|
|
Motor
|
Blade Drive
|
5.5 kw (7.5HP)
|
|
Hyd. Pump
|
1.5 kw (2HP)
|
|
Coolant Pump
|
0.2 kw (1/4HP)
|
|
Blade Size
|
4880 x 41 x 1.3 mm (192" x 1.6" x 0.05")
|
|
Blade Tension
|
Hydraulic
|
|
Index Length
|
-
|
|
Machine Weight
|
2100 kg (4620 lb)
|
|
Floor Space (L x W)
|
2550 x 1900 mm (98.4" x 74.8")
|
|
| |
|
|
|
|
H-7050
|
|
|
| |
|
|
 |
|
|
Model
|
H-7050
|
|
Capacity
|
?
|
500 mm (20")
|
|
¦
|
700 x 500 mm (28" W x 20" H)
min. clamp width 165 mm (6.5")
|
|
Blade Speed
|
17, 25, 35, 45, 65, 75 m/min (55, 80, 115, 150, 180, 215, 250 fpm)
|
|
Motor
|
Blade Drive
|
5.5 kW (7.5HP)
|
|
Hyd. Pump
|
1.5 kW (2HP)
|
|
Coolant Pump
|
0.2 kW (1/4HP)
|
|
Blade Size
|
5450 x 41 x 1.3 mm (214.6" x 1.6" x 0.05")
|
|
Blade Tension
|
Hydraulic
|
|
Index Length
|
-
|
|
Machine Weight
|
2400 kg (5280 lb)
|
|
Floor Space (L x W)
|
2700 x 2000 mm (106.3" x 78.7")
|
|
| |
|
|
|
|

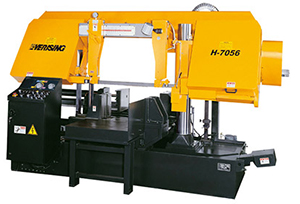

H-7056
|
|
|
| |
|
|
 |
|
|
Model
|
H-7056
|
|
Capacity
|
?
|
560 mm (22")
|
|
¦
|
700 x 560 mm (28" W x 22" H)
min. clamp with 75 mm (3")
|
|
Blade Speed
|
20 to 80 m/min. (65 to 264 fpm) (INVERTER)
|
|
Motor
|
Blade Drive
|
7.5 kw (10HP)
|
|
Hyd. Pump
|
2.2 kw (3HP)
|
|
Coolant Pump
|
0.2 kw (1/4HP)
|
|
Blade Size
|
6800 x 54 x 1.6 mm (267" x 2.1" x 0.063")
|
|
Blade Tension
|
Hydraulic
|
|
Index Length
|
300 mm (11.8")
|
|
Machine Weight
|
4200 kg (9240 lb)
|
|
Floor Space (L x W)
|
3700 x 2200 mm (145.6" x 86.6")
|
|
| |
|
|
|
|

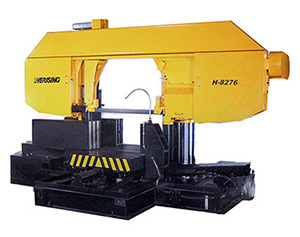

H-8276VT
|
|
|
| |
|
|
 |
|
|
Model
|
H-8276V/T
|
|
Capacity
|
?
|
760 mm (30")
|
|
¦
|
820 x 760 mm (32.3" W x 30" H)
min. clamp width 285 mm (11.2")
|
|
Blade Speed
|
15 to 75 m/min. (50 to 250 fpm) (INVERTER)
|
|
Motor
|
Blade Drive
|
7.5 kW (10HP)
|
|
Hyd. Pump
|
2.2 kW (3HP)
|
|
Coolant Pump
|
0.2 kW (1/4HP)
|
|
Blade Size
|
8000 x 54 x 1.6 mm (315" x 2" x 0.063")
|
|
Blade Tension
|
Hydraulic
|
|
Index Length
|
500 mm (20")(V)
400 mm (15.7") (T)
|
|
Machine Weight
|
7000 kg (15400 lb)
|
|
Floor Space (L x W)
|
4100 x 2200 mm (161.4" x 86.6")
|
|
| |
|
|
|
|

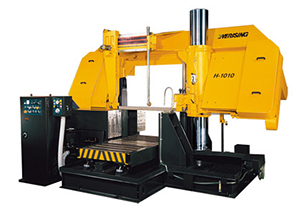

H-1010
|
|
|
 |
|
|
Model
|
H-1010
|
|
Capacity
|
?
|
1000 mm (40")
|
|
¦
|
1000 x 1000 mm (40" W x 40" H)
min. clamp width 570 mm (22.5")
|
|
Blade Speed
|
15 to 70 m/min. (50 to 230 fpm) (INVERTER)
|
|
Motor
|
Blade Drive
|
11.5 kW (15HP)
|
|
Hyd. Pump
|
3.7 kW (5HP)
|
|
Coolant Pump
|
0.2 kW (1/4HP)
|
|
Blade Size
|
8800 x 67 x 1.6 mm (346 1/2" x 2 5/8" x 0.063")
|
|
Blade Tension
|
Hydraulic
|
|
Index Length
|
500 mm (20")
|
|
Machine Weight
|
9500 kg (20900 lb)
|
|
Floor Space (L x W)
|
4150 x 2280 mm (163.5" x 90")
|
|
| |
|
|
| |
|
|
|
|

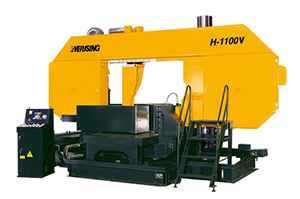

H-1100VT
|
|
|
| |
|
|
 |
|
|
Model
|
H-1100V/T
|
|
Capacity
|
?
|
1000 mm (40")
|
|
¦
|
1100 x 1000 mm (43.3" W x 40" H)
min. clamp width 400 mm (15.7")
|
|
Blade Speed
|
15 to 75 m/min. (50 to 250 fpm) (INVERTER)
|
|
Motor
|
Blade Drive
|
11.5 kW (15HP)
|
|
Hyd. Pump
|
3.7 kW (5HP)
|
|
Coolant Pump
|
0.2 kW (1/4HP)
|
|
Blade Size
|
11100 x 80 x 1.6 mm (437" x 3" x 0.063")
|
|
Blade Tension
|
Hydraulic
|
|
Index Length
|
500 mm (20")
|
|
Machine Weight
|
14000 kg (30800 lb)
|
|
Floor Space (L x W)
|
5070 x 2650 mm (199.6" x 104.3")
|
|
| |
|
|
|
|

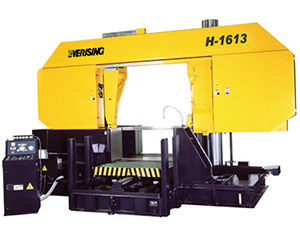

H-1613
|
|
|
| |
|
|
 |
|
|
Model
|
H-1613
|
|
Capacity
|
?
|
1300 mm (52")
|
|
¦
|
1600 x 1300 mm (63" W x 52" H)
min. clamp width 710 mm (27.5")
|
|
Blade Speed
|
15 to 70 m/min (50 to 230 fpm) (INVERTER)
|
|
Motor
|
Blade Drive
|
15 kW (20HP)
|
|
Hyd. Pump
|
3.7 kW (5HP)
|
|
Coolant Pump
|
0.2 kW (1/4HP)
|
|
Blade Size
|
13000 x 80 x 1.6 mm (511" x 3" x 0.063")
|
|
Blade Tension
|
Hydraulic
|
|
Index Length
|
600 mm (23.6")
|
|
Machine Weight
|
20000 kg (44000 lb)
|
|
Floor Space (L x W)
|
5950 x 2800 mm (234" x 110")
|
|
| |
|
|
|
|

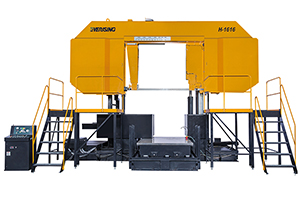

H-1616
|
|
|
| |
|
|
 |
|
|
Model
|
H-1616
|
|
Capacity
|
?
|
1600 mm (63")
|
|
¦
|
1600 x 1600 mm (63" W x 63" H)
min. clamp width 600 mm (23.6")
|
|
Blade Speed
|
12 to 60 m/min (40 to 200 fpm) (INVERTER)
|
|
Motor
|
Blade Drive
|
15 kW (20HP)
|
|
Hyd. Pump
|
5.5 kW (7.5HP)
|
|
Coolant Pump
|
0.4 kW (1/2HP)
|
|
Blade Size
|
15500 x 80 x 1.6 mm (484" x 3" x 0.063")
|
|
Blade Tension
|
Hydraulic
|
|
Index Length
|
1800 mm (70.9")
|
|
Machine Weight
|
31500 kg (69300 lb)
|
|
Floor Space (L x W)
|
7350 x 4900 mm (289.3" x 192.9")
|
|
| |
|
|
|
|

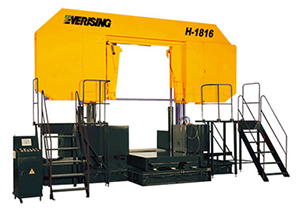

H-1816
|
|
|
| |
|
|
 |
|
|
Model
|
H-1816
|
|
Capacity
|
?
|
1600 mm (63")
|
|
¦
|
1800 x 1600 mm (71" W x 63" H)
min. clamp width 600 mm (23.6")
|
|
Blade Speed
|
12 to 60 m/min. (40 to 200 fpm) (INVERTER)
|
|
Motor
|
Blade Drive
|
15 kW (20HP)
|
|
Hyd. Pump
|
5.5 kW (7.5HP)
|
|
Coolant Pump
|
0.4 kW (1/2HP)
|
|
Blade Size
|
15900 x 80 x 1.6 mm (626" x 3" x 0.063")
|
|
Blade Tension
|
Hydraulic
|
|
Index Length
|
1800 mm (70.9")
|
|
Machine Weight
|
33000 kg (72600 lb)
|
|
Floor Space (L x W)
|
7610 x 4700 mm (299.6" x 185")
|
|
| |
|
|
|
|

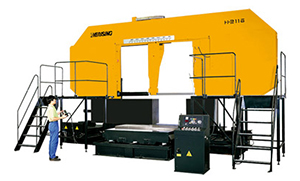

H-2116
|
|
|
| |
|
|
 |
|
|
Model
|
H-2116
|
|
Capacity
|
?
|
1600 mm (63")
|
|
¦
|
2100 x 1600 mm (82.7" W x 63" H)
min. clamp width 600 mm (23.6")
|
|
Blade Speed
|
12 to 60 m/min. (40 to 200 fpm) (INVERTER)
|
|
Motor
|
Blade Drive
|
15 kW (20HP)
|
|
Hyd. Pump
|
5.5 kW (7.5HP)
|
|
Coolant Pump
|
0.4 kW (1/2HP)
|
|
Blade Size
|
16500 x 80 x 1.6 mm (649.6" x 3" x 0.063”)
|
|
Blade Tension
|
Hydraulic
|
|
Index Length
|
1800 mm (70.9")
|
|
Machine Weight
|
36000 kg (79200 lb)
|
|
Floor Space (L x W)
|
7920 x 4810 mm (311.8" x 189.3")
|
|
| |
|
|
|
|

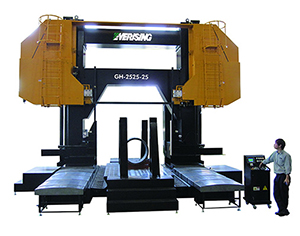

GH-2525-25
|
|
|
| |
|
|
 |
|
|
Model
|
GH2525-25
|
|
Cutting Range Square ¦
|
2500 mm(W) x 2500 mm(W)
|
|
Cutting Range Round ?
|
2500 mm
|
|
Bow Travel
|
2500 mm
|
|
Portal Stroke
|
2500 mm
|
|
Blade Size
|
17750 X 80 X 1.6 mm
|
|
Adjustable Blade Speed
|
15 - 60 m/min
|
|
Blade Motor
|
30 HP
|
|
Hydraulic Power Pack Motor
|
10 HP
|
|
Hydraulic Chip Brush Motor
|
1/2 HP
|
|
Screw Type Chip Conveyor ( X 2 )
|
40 W
|
|
Chain Type Chip Conveyor
|
1/4 HP
|
|
Overall Dimensions
|
7450 mm X 6250 mm
|
|
Overall Height
|
6500 mm
|
|
Overall Weight
|
38000 kg
|
|
| |
|
|
| |
|
|
