Grease Injection Control Head

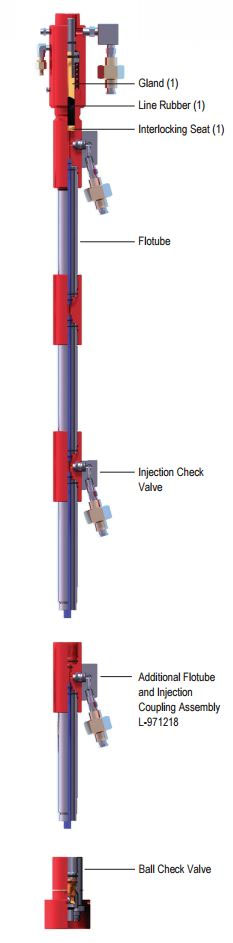

Our Grease Injection Control Head are designed to create a seal around a moving wireline by allowing intervention access to wells under pressure. It comprises of two major sub assemblies, the stuffing box or pack off and the flotube assembly (solid or concentric type).



Features :





Flotube clearance 0.003" - 0.008"

Test plug

Test cap

Flotube Go-NoG0 Gauge

Liner Wiper (size 3/16, 7/32", and 5/16")

Pressure rating 10,000 psi









Note: For more details and custom designed requirements, please contact our team here.
