Punching Machines |

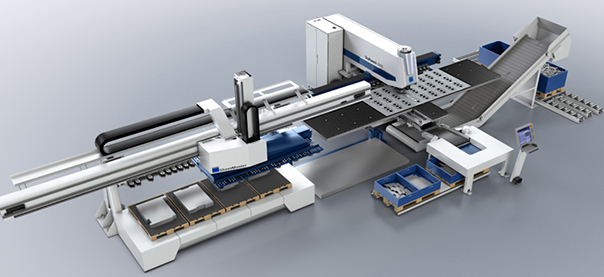

| TruPunch 3000 |
| |
.jpg) |
| |
|
Technical Specification
|
TruPunch 3000 medium format
|
TruPunch 3000 large format
|
|
Working area
|
|
|
|
Punching operation
|
2500 mm x 1250 mm
|
3000 mm x 1500 mm
|
|
Max. sheet thickness
|
6,4 mm
|
6,4 mm
|
|
Max. punching force
|
180 kN
|
180 kN
|
|
Max. stroke rate
|
|
|
|
Punching (E = 1 mm)
|
1000 1/min
|
800 1/min
|
|
Marking
|
ca. 2500 1/min
|
ca. 2500 1/min
|
|
Max. number tools
|
|
|
|
with 2 clamps
|
18 pieces
|
|
|
with 3 clamps
|
|
21 pieces
|
|
Tool change time (Single tool)
|
3 s
|
3 s
|
|
Tool change time (Multitool)
|
0,3 s
|
0,3 s
|
|
Space requirements
|
5000 mm x 6500 mm
|
5800 mm x 7650 mm
|
|
Punching head
|
electric
|
electric
|
|
| |
| |
 |
