Bending Machines |
TruBend Series 3000
|
| |
|
| |
|
Technical Specification
|
TruBend 3066
|

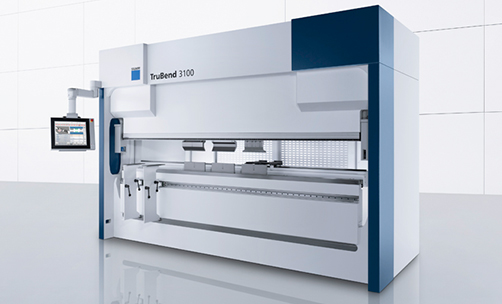

TruBend 3100
|
TruBend 3170
|
|
Press force
|
660 kN
|
1000 kN
|
1700 kN
|
|
Bending length
|
2040 mm
|
3060 mm
|
4080 mm
|
|
Width between columns
|
2364 mm
|
3384 mm
|
4404 mm
|
|
Usable installation height
|
430* mm
|
430* mm
|
580* mm
|
|
Usable installation height with larger model (options)
|
|
580* mm
|
|
|
Rapid speed
|
200 mm/s
|
200 mm/s
|
170 mm/s
|
|
Max. working speed
|
15 mm/s
|
15 mm/s
|
10 mm/s
|
|
Control
|
T3500T Multi-Touch
|
T3500T Multi-Touch
|
T3500T Multi-Touch
|
|
| |
| |
 |
