Vertical Bandsaw Machines
|
|

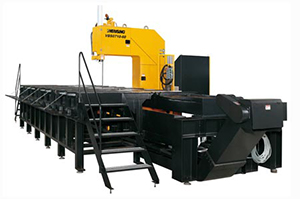

VBS 0407
|
|
|
| |
|
|
 |
|
|
Model
|
VBS0407
|
|
Cutting height
|
400 mm (15.7”)
|
|
Cutting depth
|
700 mm (27.6”)
|
|
Cutting length
|
3/4.5/6 M
|
|
Table support width
|
Outer table
|
1600 mm (63”)
|
|
Inner table
|
700 mm (27.6”)
|
|
Blade size
|
6200 x 54 x 1.6 mm (244.1” x 2.1” x 0.063”)
|
|
Blade speed
|
15-75 m/min (50 to 250 fpm)
|
|
Cutting feed
|
Servomotor (2-500 mm/min)
|
|
Motor
|
Blade drive
|
5.5 kW (7.5 HP)
|
|
Hydraulic pump
|
1.5 kW (2 HP) x2
|
|
Coolant pump
|
0.75 kW (1 HP)
|
|
Feed servomotor
|
1 kW
|
|
Table height
|
1500 mm (59.1”)
|
|
Floor space
|
10100L x 4100W mm (397.6” x 161.4”) (6M)
|
|
Machine height
|
3400 mm (133.9”)
|
|
Machine weight (approx.)
|
14500kgs (31967lbs) (6M)
|
|
| |
|
|
|
|

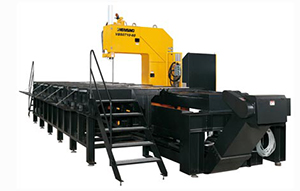

VBS 0707
|
|
|
| |
|
|
 |
|
|
Model
|
VBS0707
|
|
Cutting height
|
700 mm (27.6”)
|
|
Cutting depth
|
700 mm (27.6”)
|
|
Cutting length
|
3/4.5/6 M
|
|
Table support width
|
Outer table
|
1600 mm (63”)
|
|
Inner table
|
700 mm (27.6”)
|
|
Blade size
|
6800 x 54 x 1.6 mm (267.7” x 2.1” x 0.063”)
|
|
Blade speed
|
15-75 m/min (50 to 250 fpm)
|
|
Cutting feed
|
Servomotor (2-500 mm/min)
|
|
Motor
|
Blade drive
|
5.5 kW (7.5 HP)
|
|
Hydraulic pump
|
1.5 kW (2 HP) x2
|
|
Coolant pump
|
0.75 kW (1 HP)
|
|
Feed servomotor
|
1 kW
|
|
Table height
|
1500 mm (59.1”)
|
|
Floor space
|
10100L x 4100W mm (379.6” x 161.4”) (6M)
|
|
Machine height
|
3700 mm (145.7”)
|
|
Machine weight (approx.)
|
15000 kgs (33069 lbs) (6M)
|
|
| |
|
|
|
|

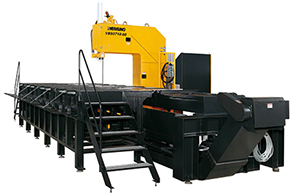

VBS 0710
|
|
|
| |
|
|
 |
|
|
Model
|
VBS0710
|
|
Cutting height
|
700 mm (27.6”)
|
|
Cutting depth
|
1000 mm (39.4”)
|
|
Cutting length
|
3/4.5/6 M
|
|
Table support width
|
Outer table
|
1600 mm (63”)
|
|
Inner table
|
1000 mm (39.4”)
|
|
Blade size
|
7140 x 54 x 1.6 mm (281.1” x 2.1” x 0.063”)
|
|
Blade speed
|
15-75 m/min (50 to 250 fpm)
|
|
Cutting feed
|
Servomotor (2-500 mm/min)
|
|
Motor
|
Blade drive
|
5.5 kW (7.5 HP)
|
|
Hydraulic pump
|
1.5 kW (2 HP) x2
|
|
Coolant pump
|
0.75 kW (1 HP)
|
|
Feed servomotor
|
1 kW
|
|
Table height
|
1400 mm (55.1”)
|
|
Floor space
|
10300L x 4700W mm (405.5” x 185”) (6M)
|
|
Machine height
|
3700 mm (147.5”)
|
|
Machine weight (approx.)
|
19000 kgs (41888 lbs) (6M)
|
|
| |
|
|
|
|

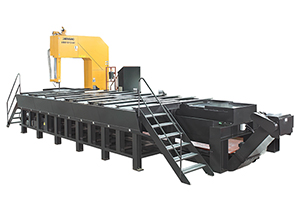

VBS1013
|
|
|
| |
|
|
 |
|
|
Model
|
VBS1013
|
|
Cutting height
|
1000 mm (39.4”)
|
|
Cutting depth
|
1300 mm (51.2”)
|
|
Cutting length
|
3/4.5/6 M
|
|
Table support width
|
Outer table
|
1600 mm (63”)
|
|
Inner table
|
1300 mm (51.2”)
|
|
Blade size
|
8800 x 67 x 1.6 mm (346.5” x 2.6” x 0.063”)
|
|
Blade speed
|
15-75 m/min (50 to 250 fpm)
|
|
Cutting feed
|
Servomotor (1-300 mm/min)
|
|
Motor
|
Blade drive
|
7.5 kW (10 HP)
|
|
Hydraulic pump
|
1.5 kW (2 HP) x2
|
|
Coolant pump
|
0.75 kW (1 HP)
|
|
Feed servomotor
|
1.5 kW
|
|
Table height
|
1500 mm (59.1”)
|
|
Floor space
|
10900L x 5300W mm (429.1” x 208.7”) (6M)
|
|
Machine height
|
4600 mm (181.1”)
|
|
Machine weight (approx.)
|
28000 kgs (61729 lbs) (6M)
|
|
| |
|
|
|
|
VBS1316
|
|
|
| |
|
|
 |
|
|
Model
|
VBS1316
|
|
Cutting height
|
1300 mm (51.2”)
|
|
Cutting depth
|
1600 mm (63”)
|
|
Cutting length
|
3/4.5/6 M
|
|
Table support width
|
Outer table
|
2000 mm (78.7”)
|
|
Inner table
|
1600 mm (63”)
|
|
Blade size
|
10000 x 80 x 1.6 mm (393.7” x 3.1” x 0.063”)
|
|
Blade speed
|
15-75 m/min (50 to 250 fpm)
|
|
Cutting feed
|
Servomotor (1-300 mm/min)
|
|
Motor
|
Blade drive
|
11.2 kW (15 HP)
|
|
Hydraulic pump
|
1.5 kW (2 HP) x2
|
|
Coolant pump
|
0.75 kW (1 HP)
|
|
Feed servomotor
|
2 kW
|
|
Table height
|
1750 mm (68.9”)
|
|
Floor space
|
11500L x 5600W mm (452.8” x 220.5”) (6M)
|
|
Machine height
|
5400 mm (212.6”)
|
|
Machine weight (approx.)
|
35000 kgs (77162 lbs) (6M)
|
|
| |
|
|
|
|

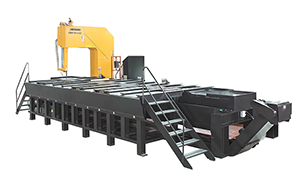

VBS 2016
|
|
|
| |
|
|
 |
|
|
Model
|
VBS2016
|
|
Cutting height
|
2000 mm (78.7”)
|
|
Cutting depth
|
1600 mm (63”)
|
|
Cutting length
|
3/4.5/6 M
|
|
Table support width
|
Outer table
|
2000 mm (78.7”)
|
|
Inner table
|
1600 mm (63”)
|
|
Blade size
|
12370 x 80 x 1.6 mm (487” x 3.1” x 0.063”)
|
|
Blade speed
|
15-75 m/min (50 to 250 fpm)
|
|
Cutting feed
|
Servomotor (1-300 mm/min)
|
|
Motor
|
Blade drive
|
18.7 kW (25 HP)
|
|
Hydraulic pump
|
1.5 kW (2 HP) x2
|
|
Coolant pump
|
0.75 kW (1 HP)
|
|
Feed servomotor
|
2 kW
|
|
Table height
|
2100 mm (82.7”)
|
|
Floor space
|
10500L x 6050W mm (413.4” x 238.2”) (4.5M)
|
|
Machine height
|
7650 mm (301.2”)
|
|
Machine weight (approx.)
|
43500 kgs (95901 lbs) (4.5M)
|
|
