Fully Automatic Bandsaw Machines
|
|

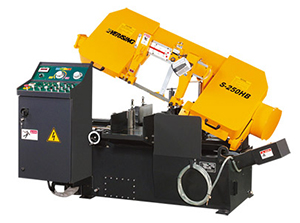

S 250 HB
|
|
|
| |
|
|
 |
|
|
Model
|
S-250HB
|
|
Capacity
|
?
|
250 mm (10")
|
|
¦
|
300 x 250 mm (12"W x 10"H)
|
|
Bundle Cutting
|
Width
|
145 to 190 mm (5.7" to 7.5")
|
|
Height
|
30 to 120 mm (1.2" to 4.5")
|
|
Blade Speed
|
50Hz
|
400 mm (16")
400 mm x 9 times(16" x 9)
|
|
60Hz
|
|
Motor
|
Blade Drive
|
3.7 kW (5HP)
|
|
Hyd. Pump
|
0.75 kW (1HP)
|
|
Coolant Pump
|
0.1 kW (1/8HP)
|
|
Blade Size
|
3505 x 34 x 1.1 mm
(138" x 1.3" x 0.042")
|
|
Blade Tension
|
Hydraulic
|
|
Index Length
|
400 mm (16")
400 mm x 9 times (16" x 9)
|
|
Machine Weight
|
1460 kg (3215 lb)
|
|
Floor Space (L x W)
|
2100 x 2200 mm (82.6" x 86.6")
|
|
| |
|
|
|
|

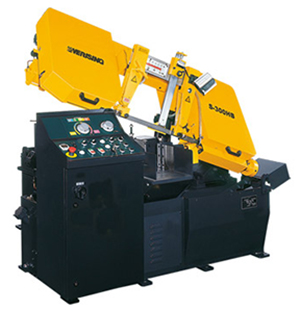

S 300HB
|
|
|
| |
|
|
 |
|
|
Model
|
S-300HB
|
|
Capacity
|
?
|
300 mm (12")
|
|
¦
|
300 x 250 mm (12"W x 10"H)
|
|
Bundle Cutting
|
Width
|
145 to 230 mm (5.7" to 9")
|
|
Height
|
30 to 130 mm (1.2" to 5")
|
|
Blade Speed
|
50Hz
|
20 to 100 m/min (65 to 330 fpm)
(INVERTER)
|
|
60Hz
|
|
Motor
|
Blade Drive
|
3.7 kW (5HP)
|
|
Hyd. Pump
|
0.75 kW (1HP)
|
|
Coolant Pump
|
0.1 kW (1/8HP)
|
|
Blade Size
|
3820 x 34 x 1.1 mm (150" x 1.3" x 0.042")
|
|
Blade Tension
|
Spring Loaded-manual
|
|
Index Length
|
400 mm (16")
400 mm x 9 times (16" x 9)
|
|
Machine Weight
|
1550 kg (3417 lb)
|
|
Floor Space (L x W)
|
2100 x 2200 mm (82.6" x 86.6")
|
|
| |
|
|
|
|

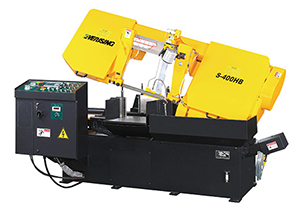

S-400HB
|
|
|
| |
|
|
 |
|
|
Model
|
S-400HB
|
|
Capacity
|
?
|
420 mm (16.5")
|
|
¦
|
420 x 420 mm (16.5"W x 16.5"H)
|
|
Bundle Cutting
|
Width
|
195 to 300 mm (8" to 12")
|
|
Height
|
90 to 200 mm (3.5" to 8")
|
|
Blade Speed
|
20 to 100 m/min (65 to 330 fpm) (INVERTER)
|
|
Motor
|
Blade Drive
|
5.5 kW (7.5HP)
|
|
Hyd. Pump
|
1.5 kW (2HP)
|
|
Coolant Pump
|
0.2 kW (1/4HP)
|
|
Blade Size
|
4570 x 41 x 1.3 mm (180" x 1.6" x 0.05")
|
|
Blade Tension
|
Hydraulic
|
|
Index Length
|
500 mm (20")
500 mm x 9 times (20" x 9)
|
|
Machine Weight
|
2360 kg (5190 lb)
|
|
Floor Space (L x W)
|
2590 x 2180 mm (102" x 85.8")
|
|
| |
|
|
|
|
S-460 HB
|
|
|
| |
|
|
| |
|
|
Model
|
S-460HB
|
|
Capacity
|
?
|
420 mm (16.5")
|
|
¦
|
420 x 420 mm (16.5"W x 16.5"H)
|
|
Bundle Cutting
|
Width
|
195 to 300 mm (8" to 12")
|
|
Height
|
90 to 200 mm (3.5" to 8")
|
|
Blade Speed
|
20 to 100 m/min (65 to 330 fpm) (INVERTER)
|
|
Motor
|
Blade Drive
|
5.5 kW (7.5HP)
|
|
Hyd. Pump
|
1.5 kW (2HP)
|
|
Coolant Pump
|
0.2 kW (1/4HP)
|
|
Blade Size
|
4570 x 41 x 1.3 mm (180" x 1.6" x 0.05")
|
|
Blade Tension
|
Hydraulic
|
|
Index Length
|
500 mm (20")
500 mm x 9 times (20" x 9)
|
|
Machine Weight
|
2360 kg (5190 lb)
|
|
Floor Space (L x W)
|
2590 x 2180 mm (102" x 85.8")
|
|
| |
|
|
| |
|
|
