Vertical Bandsaw Machines
|
|

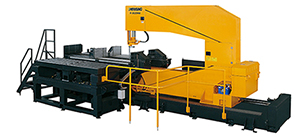

V-0417
|
|
|
| |
|
|
 |
|
|
Model
|
V-0417
|
|
Cutting capacity (H x D)
|
400 mm x 1700 mm (15.7" x 67")
min. clamp width 700 mm (27.5")
|
|
Blade Speed
|
15-75 m/min (50 to 250 fpm)
|
|
Motor
|
Blade drive
|
7.5 kW (10 HP)
|
|
Hydraulic pump
|
2.2 kW (3 HP)
|
|
Coolant pump
|
0.6 kW (3/4 HP)
|
|
Chip conveyor
|
0.4 kW (1/2 HP)
|
|
Blade Size
|
9040 x 54 x 1.6 mm (355.90" x 2" x 0.063")
|
|
Shuttle vise stroke
|
400 mm (15.7") (optional)
|
|
Saw frame feed
|
Servomotor
|
|
Saw frame shuttle stroke
|
1900 mm (74.8")
|
|
Table height
|
1600 mm (63")
|
|
Machine weight
|
15200 kg (33500 lb) (SA)
16500 kg (36300 lb) (HA)
|
|
Floor space without roller table (LxDxH)
|
3100 x 7300 x 3600 mm (SA)
(122" x 287.4" x 141.7") (SA)
|
|
3400 x 7300 x 3600 mm (HA)
(133.8" x 287.4" x 141.7") (HA)
|
|
| |
|
|
|
|
V-0422
|
|
|
| |
|
|
 |
|
|
Model
|
V-0422
|
|
Cutting capacity (H x D)
|
400 mm x 2200 mm (15.7" x 86.6")
min. clamp width 1200 mm (47.2")
|
|
Blade Speed
|
15-75 m/min (50 to 250 fpm)
|
|
Motor
|
Blade drive
|
7.5 kW (10 HP)
|
|
Hydraulic pump
|
2.2 kW (3 HP)
|
|
Coolant pump
|
0.6 kW (3/4 HP)
|
|
Chip conveyor
|
0.4 kW (1/2 HP)
|
|
Blade Size
|
9940 x 54 x 1.6mm (391.3" x 2" x 0.063")
|
|
Shuttle vise stroke
|
400 mm (15.7") (optional)
|
|
Saw frame feed
|
Servomotor
|
|
Saw frame shuttle stroke
|
2400 mm (94.4")
|
|
Table height
|
1600 mm (63")
|
|
Machine weight
|
16500 kgs (36300 lbs) (SA)
17500 kgs (38500 lbs) (HA)
|
|
Floor space without roller table (LxDxH)
|
3100 x 8150 x 3700 mm (SA)
(122" x 320.8" x 145.6") (SA)
|
|
3400 x 8150 x 3700 mm (HA)
(133.8" x 320.8" x 145.6") (HA)
|
|
| |
|
|
|
|

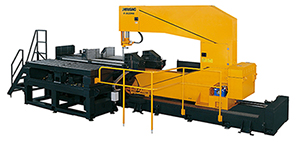

V-0615
|
|
|
| |
|
|
 |
|
|
Model
|
V-0615
|
|
Cutting capacity (H x D)
|
600 mm x 1500 mm (23.6" x 59")
min. clamp width 500 mm (19.6")
|
|
Blade Speed
|
15-75 m/min (50 to 250 fpm)
|
|
Motor
|
Blade drive
|
5.5 kW (7.5 HP)
|
|
Hydraulic pump
|
2.2 kW (3 HP)
|
|
Coolant pump
|
0.6 kW (3/4 HP)
|
|
Chip conveyor
|
0.4 kW (1/2 HP)
|
|
Blade Size
|
8100 x 41 x 1.3 mm (318.9" x 1.6" x 0.05")
|
|
Shuttle vise stroke
|
400 mm (15.7")
|
|
Saw frame feed
|
Hydraulic
|
|
Saw frame shuttle stroke
|
1700 mm (66.9")
|
|
Table height
|
1350 mm (53")
|
|
Machine weight
|
12500 kgs (27500 lbs) (SA)
16500 kgs (36300 lbs) (HA)
|
|
Floor space without roller table (LxDxH)
|
3100 x 6400 x 3200 mm (SA)
(122" x 251.9" x 126") (SA)
|
|
3400 x 6400 x 3200 mm (HA)
(133.8" x 251.9" x 126") (HA)
|
|
| |
|
|
|
|

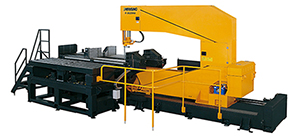

V-0625
|
|
|
| |
|
|
|
|
|
Model
|
V-0625
|
|
Cutting capacity (H x D)
|
600 mm x 2500 mm (23.6" x 98.4")
min. clamp width 1500 mm (59")
|
|
Blade Speed
|
15-75 m/min (50 to 250 fpm)
|
|
Motor
|
Blade drive
|
5.5 kW (7.5 HP)
|
|
Hydraulic pump
|
2.2 kW (3 HP)
|
|
Coolant pump
|
0.6 kW (3/4 HP)
|
|
Chip conveyor
|
0.4 kW (1/2 HP)
|
|
Blade Size
|
9850 x 41 x 1.3 mm (387.8" x 1.6" x 0.05")
|
|
Shuttle vise stroke
|
400 mm (15.7") (optional)
|
|
Saw frame feed
|
Hydraulic
|
|
Saw frame shuttle stroke
|
2700 mm (106.3")
|
|
Table height
|
1350 mm (53")
|
|
Machine weight
|
17500 kgs (38500 lbs) (SA)
21700 kgs (47740 lbs) (HA)
|
|
Floor space without roller table (LxDxH)
|
3100 x 8400 x 3200 mm (SA)
(122" x 330.7" x 126") (SA)
|
|
3400 x 8400 x 3200 mm (HA)
(133.8" x 330.7" x 126") (HA)
|
|
| |
|
|
| |
|
|
